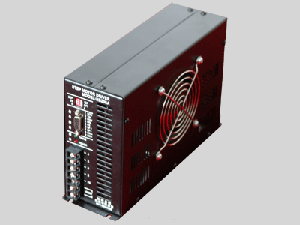

HB206A 2-phase hybrid stepping driver
一、Features
|
l
AC40～110V Power Supply
l
Max 6A Phase Current Output
l
H-Bridge PWM Modulation
l
Full/Half step Switch
l Selectable Pulse Mode- 1 clk. or 2 clk. inputs
l Disable control signal (Free)
l
Holding Position when repowered
l
Static Half Current Lock
l
Isolated Input （Photo-coupler） |
 |
二、Adapter Motors
86、90、110BYG Series 2-Phase hybrid stepper motors
三、Inputs & Outputs
|
Label |
Function
|
Note
|
|
CP+ |
Pulse signal + |
Optocoupler Input resistance 390 Ω, Rated 10mA, 10us minimum pulse width |
|
CP- |
Pulse signal - |
|
CW+ |
Direction signal + |
Optocoupler Input resistance 390 Ω, Rated 10mA,
ON: CW direction; OFF: CCW deirection |
|
CW- |
Direction signal - |
|
4/8 |
Full/Half Step Control
|
ON: Half Step; OFF: Full Step |
|
FRE |
Disable Control |
OFF: enable; ON: disable |
|
POW |
Power Indicator OC Output |
Max 50V/20mA, when being normal,Optocoupler is ON |
|
TIM |
Phase Origin Output
|
Max 50V/20mA, when being Origin, Optocoupler is ON |
|
COM |
Common Ground |
Common Ground of 4/8、FRE、POW、TIM |
|
POWER |
Power Indicator Led |
Red |
|
TIMING |
Phase Indicator Led |
Green |
|
A |
A Phase Output |
|
|
/A |
/A Phase Output |
|
|
B |
B Phase Output |
|
|
/B |
/B Phase Output |
|
|
FG |
Floating Ground
|
Earth Groung |
| AC80V |
Power Supply |
Rated AC80V（AC40～110V） |
Note: non 5V signal request corresponding increase in external resistor(about 10mA Current)
四、DIP SETTING
|
1CP 2CP |
Pulse Mode |
1CP
1-clk,CP+/CP-: Pulse Input; CW+/CW-: Direction(Level)
2CP：
2-clk,CP+/CP-: CW Pulse ; CW+/CW-: CCW Pulse |
|
I/2 OFF |
Static Half Current Lock |
I/2：Static Half Current Lock
OFF：DISABLE |
|
4 8 |
Full/Half step Switch |
4：FULL
8：HALF |

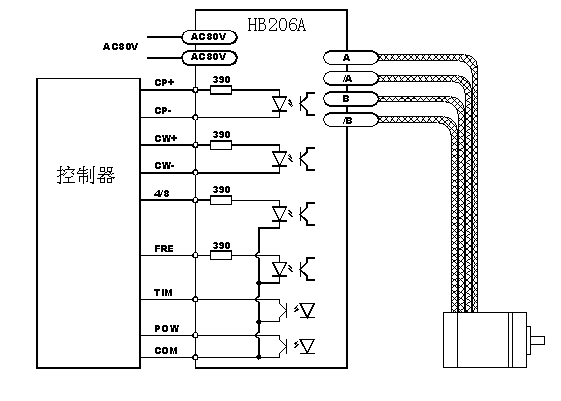

五、Connection

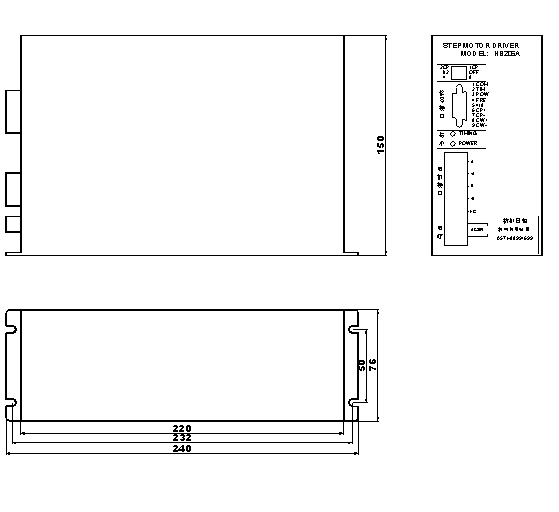

六、Dimensions
 |
