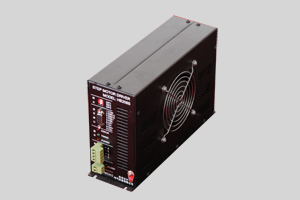

HB208S 2-phase hybrid stepping driver
一、Features
- AC220V Power Supply
- Max 8A Phase Current Output
- Using the AC servo motor current control modes to achieve a precise breakdown of the sinusoidal output current, completely solve the traditional stepper motor system low resonance, operating noise, small high-speed torque , low frequency starting shortcomings of stepper motor system and to be comparable to AC servo system.
- Robust to Parameters of Stepper Motors
- Selectalbe Microstep(8- switch)
- Disable contro l(Free)
- Isolated Input （Photo-coupler）
- Holding Position when repowered
|
 |
二、Adapter Motors
110、130、150 BYG Series 2-Phase hybrid Stepper motors
三、Inputs & Outputs
|
Label |
Function |
Note |
| CP+ |
Pulse Signal + |
Photo-coupler Input resistance 390 Ω, Rated 5V, 12mA, 2us minimum pulse width |
| CP- |
Pulse Signal - |
| CW+ |
Direction Signal + |
| CW- |
Direction Signal - |
| FRE+ |
Disable Signal + |
Photo-coupler ON: disable Output; OFF: Enable Output |
| FRE- |
Disable Signal - |
| ERR-C |
Error Output C of OC Gate |
Photo-coupler OC Output（Max 50V/20mA）。When error, C and E is short. |
| ERR-E |
Error Output E of OC Gate |
COM |
Common for cp,cw,fre |
common ground of cp,cw,fre |
| POWER |
Power Indicator led |
Red |
| TIMING |
Phase Origin Indicator |
Green |
| ERROR |
Error Indicator led |
Red |
| A |
A Output |
|
| /A |
/A Output |
|
| B |
B Output |
|
| /B |
/B Output |
|
| AC220V |
Power Supply |
Rated AC220V |
Note: non 5V signal request corresponding increase in external resistor(about 10mA Current)
四、Resolution Setting
DIP（1 2 3） |
steps/tooth |
MODE A |
MODE B |
MODE C |
000 |
256 |
200 |
160 |
001 |
128 |
100 |
80 |
010 |
64 |
50 |
40 |
011 |
32 |
40 |
32 |
100 |
16 |
25 |
20 |
101 |
8 |
20 |
16 |
110 |
4 |
10 |
10 |
111 |
保留 |
保留 |
8 |
Note：DIP“ON”=0, other Resolutions can be customized.

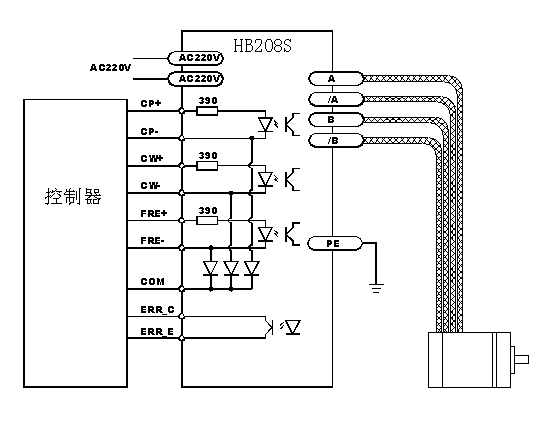

五、Connection

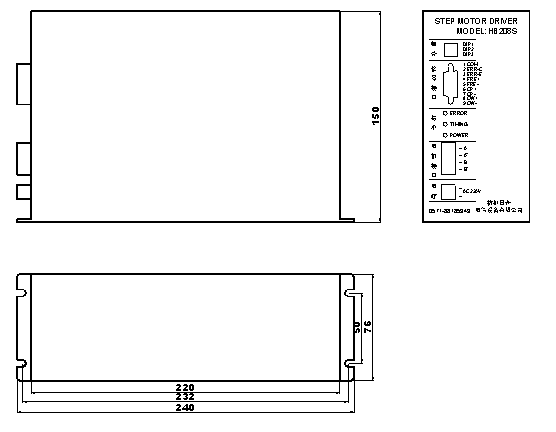

六、Dimensions
|
